Pool Main Drain Cover (2026): Anti-Vortex Grates That Fit Your Sump

A cracked or missing pool main drain cover (paid link) is not a “wait until spring” cosmetic. That grate is the only thing between a strong suction sump and an open hole in the floor. Hair, toys, and limbs should not be able to seal flat against the drain. Anti-vortex covers exist so suction spreads across the openings instead of grabbing one solid surface.

This guide stays in the accessories lane with the rest of the accessories hub. For pad hardware that stops reverse flow, see pool check valve. More cleaning and care guides live on the blog, and the homepage maps the rest of the site.

Measure the sump before you order

Bring a tape measure into the shallow end or use a snorkel in the deep end. You need three facts:

1. Outer diameter of the cover (or the frame opening if the lid is gone).
2. Screw count and spacing on the ring.
3. Condition of the frame under the lid.

Guessing from a blurry photo of “a white round drain” is how people return three covers in a week. Listings for 7-inch and 11-inch grates look similar online. In the pool they are not interchangeable.

If the old cover is still attached, photograph the top and the underside after you remove one screw. Note any brand stamp (Afras, Waterway, and others show up often). Brand is a clue, not a guarantee. Diameter and screw pattern still win.

Common 7-inch grate: Afras 7 3/8 inch

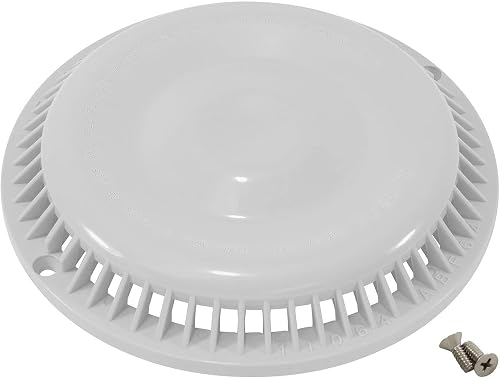

The Afras Anti-Vortex White Drain Cover 7 3/8 inch (paid link) is the default swap for many US in-ground pools. It is a cover-only part with screws in the box. Owners buy it when the frame still looks round and the inserts still accept threads.

Fit is everything. If your old lid measured closer to 11 inches across, this one will sit wrong or not sit at all. If the frame is cracked at a screw boss, a new lid will not fix the ring. That is when you move to a cover-and-frame kit.

Install with the pump off. Seat the cover flat, start every screw by hand, then snug them evenly. Do not overtighten plastic into brittle inserts. Power tools are how frames strip.

Cover plus frame: Waterway set

The Waterway White Anti-Vortex Cover and Frame (paid link) is for damaged rings. Freeze heave, impact from a vacuum head, and years of overtightened screws all crack frames. A perfect new lid on a broken ring still leaves gaps.

A matched set keeps hole spacing honest. You spend more time on the install because the frame has to seat correctly in the sump, but you avoid the “lid floats in the middle” look of a mismatched aftermarket cover.

Confirm that your sump style matches a Waterway-style ring before you commit. Some older or commercial drains use proprietary frames that need a different kit. When in doubt, pull the old frame and compare the footprint.

Larger openings: Afras 11.125 inch

Some pools use a bigger main drain opening. The Afras Anti-Vortex Drain Cover 11.125 inch (paid link) covers that case. Same anti-vortex idea as the smaller Afras, different diameter.

Do not force an 11-inch lid into a 7-inch sump. Do not stack adapters you invent from scrap PVC. Wrong size is a safety miss, not a styling miss.

If you have dual main drains, measure both. They are usually the same, but remodel work and replacements over decades sometimes leave mixed hardware.

Safety habits that matter more than brand names

Never run the pump with the cover removed for “better suction.” That is the opposite of safer.

Keep vacuum heads and wheeled cleaners from hammering the grate every cycle. If a suction cleaner parks on the drain and stalls, fix hose length and flow instead of leaving the cover loose. See best suction pool cleaner for setup habits that keep cleaners moving.

After a big freeze or a heavy vacuum season, feel the cover with your hand (pump off). A soft or cracked grate gets replaced the same week, not after opening day guests arrive.

Main drain cover vs plugs vs skimmer lids

If you are closing the pool, you still need the right plugs for returns and related fittings. That is a different shopping list: pool winterizing plugs. Do not shove a drain cover into a threaded return.

Skimmer problems belong with best pool skimmer tools, not with floor grates.

Install checklist

1. Turn the pump off and lock out anyone who might restart it.
2. Remove the old cover screws and lift the lid. Bag the old screws so they do not fall into the sump.
3. Inspect the frame. Replace the frame if cracked, oval, or stripped.
4. Clean grit out of the screw holes.
5. Seat the new cover (or frame and cover), start screws by hand, tighten evenly.
6. Confirm the cover sits flush with no rocking.
7. Restart the pump and watch for unusual vibration or debris spit from returns that suggests a loose part.

If a screw spins freely, the insert is gone. Stop. Order a frame kit instead of longer screws that will never bite.

When to call a pro

Call a pool tech if the sump itself is broken, the equalizer or dual-drain plumbing looks wrong, or local code requires a specific certified cover you cannot identify from the old part. A homeowner can swap a matching grate. A homeowner should not improvise suction outlets.

If the pool is empty for a remodel, that is the easy time to replace both drains and photograph the part numbers. Doing the same job underwater in August is why people rush and order the wrong diameter.

Bottom line

Buy the Afras 7 3/8 inch when your sump matches that size and the frame is still sound. Buy the Waterway cover-and-frame when the ring is damaged. Buy the Afras 11.125 inch only when you measured a larger opening. A pool main drain cover is a safety part: match the diameter, keep it screwed down, and never run the pump with the grate off.
